SPECIFICATIONS

Brand Name: NONE

Garden Hose Reel Type: Hose Reels

High-concerned chemical: None

Material: Plastic

Origin: Mainland China

Type: Garden Hose Reels

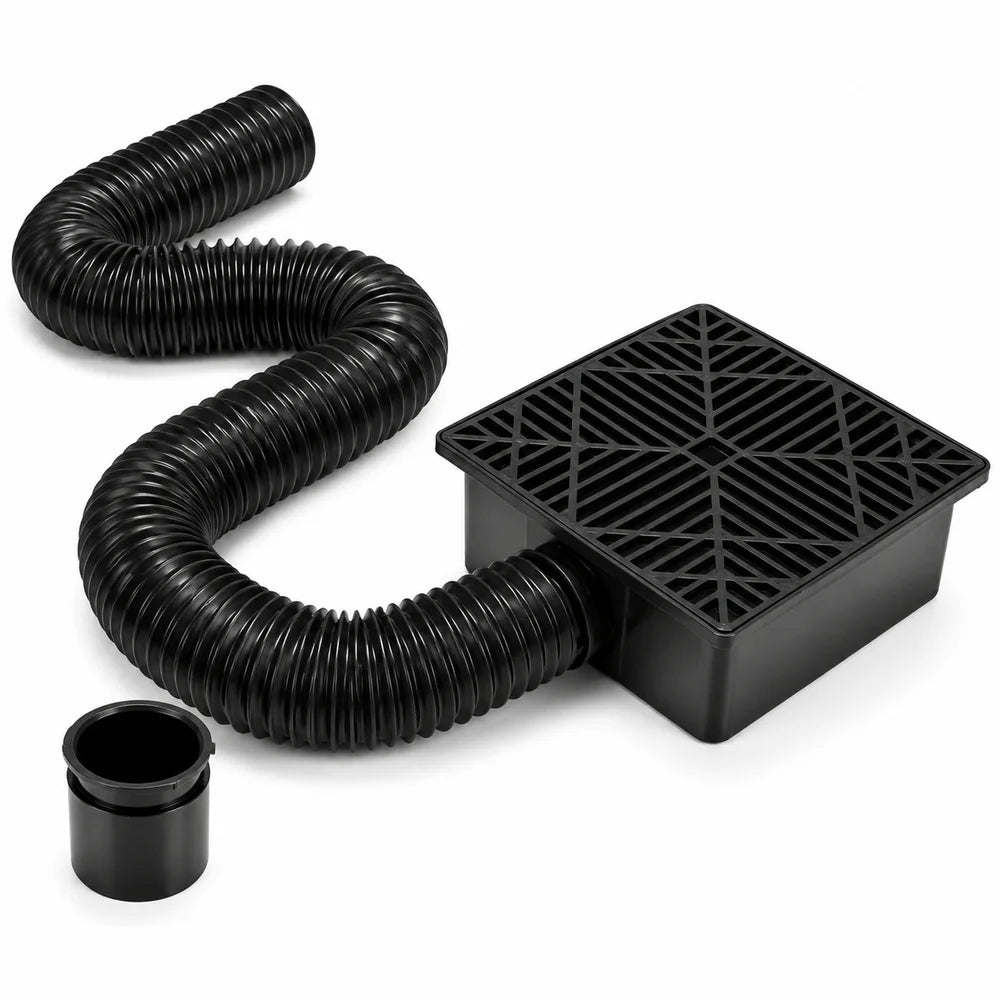

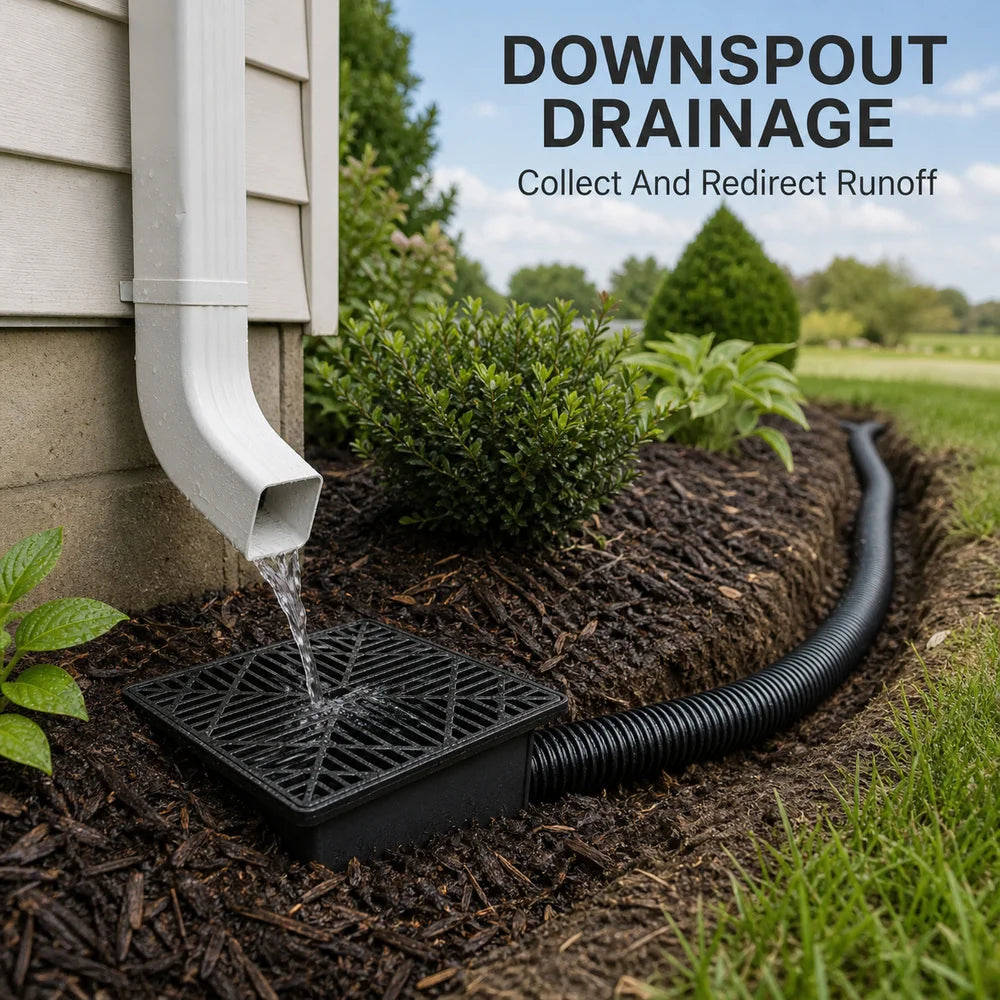

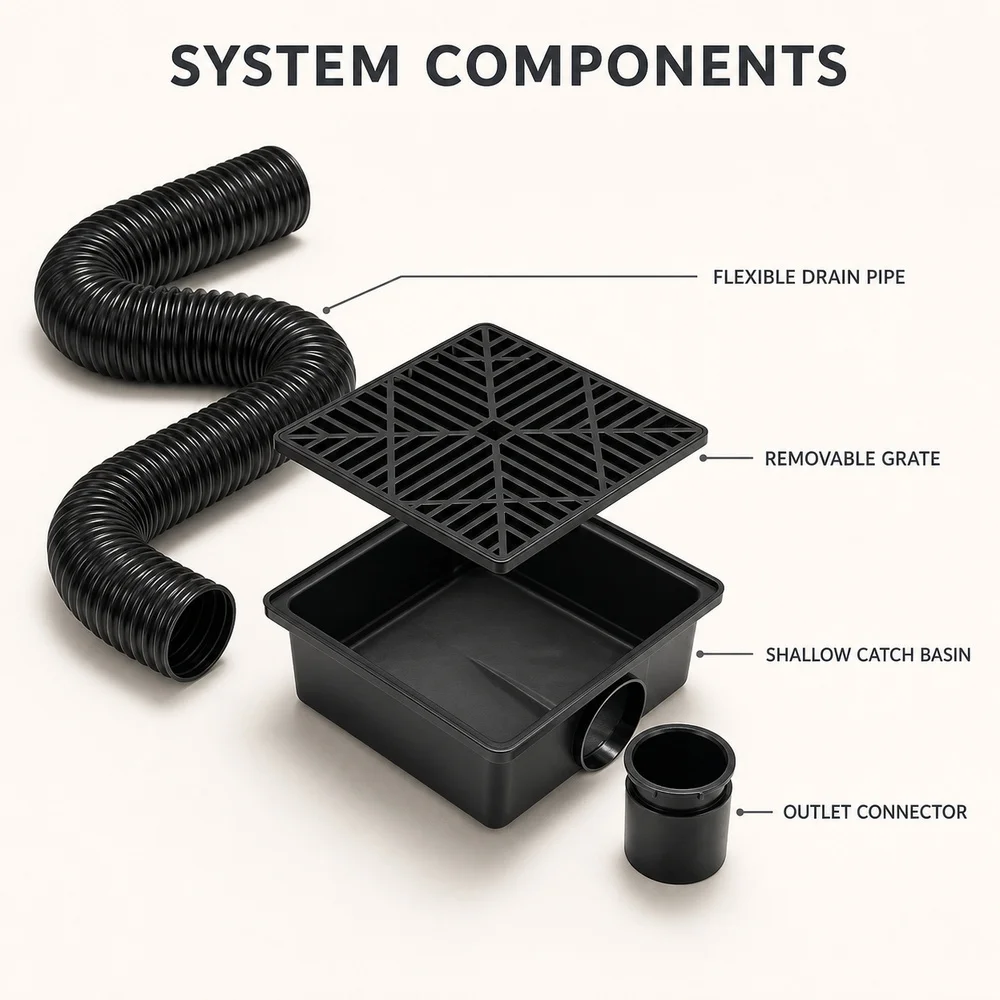

Square Outdoor Drain Catch Basin Kit with Grate Flexible Corrugated Drain Pipe Yard Patio Lawn Garden Downspout Surface Water Drainage System

【Key Features】

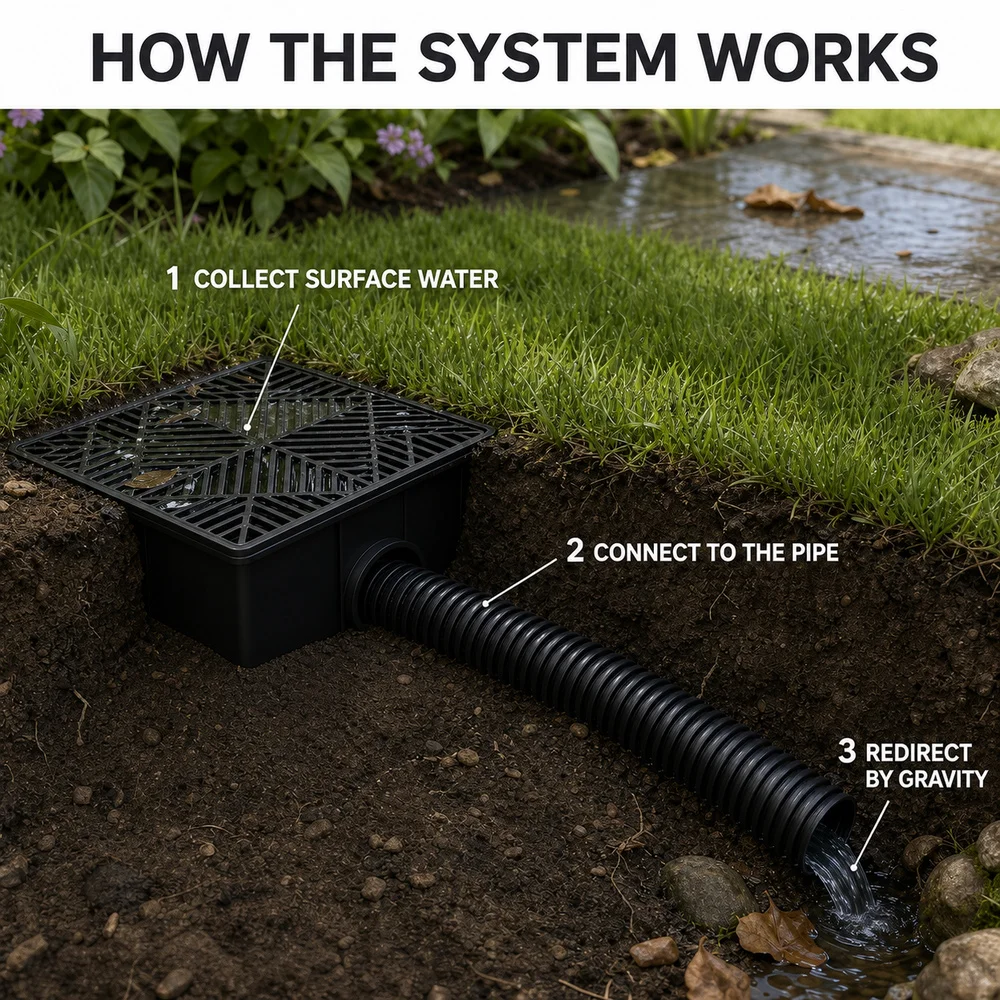

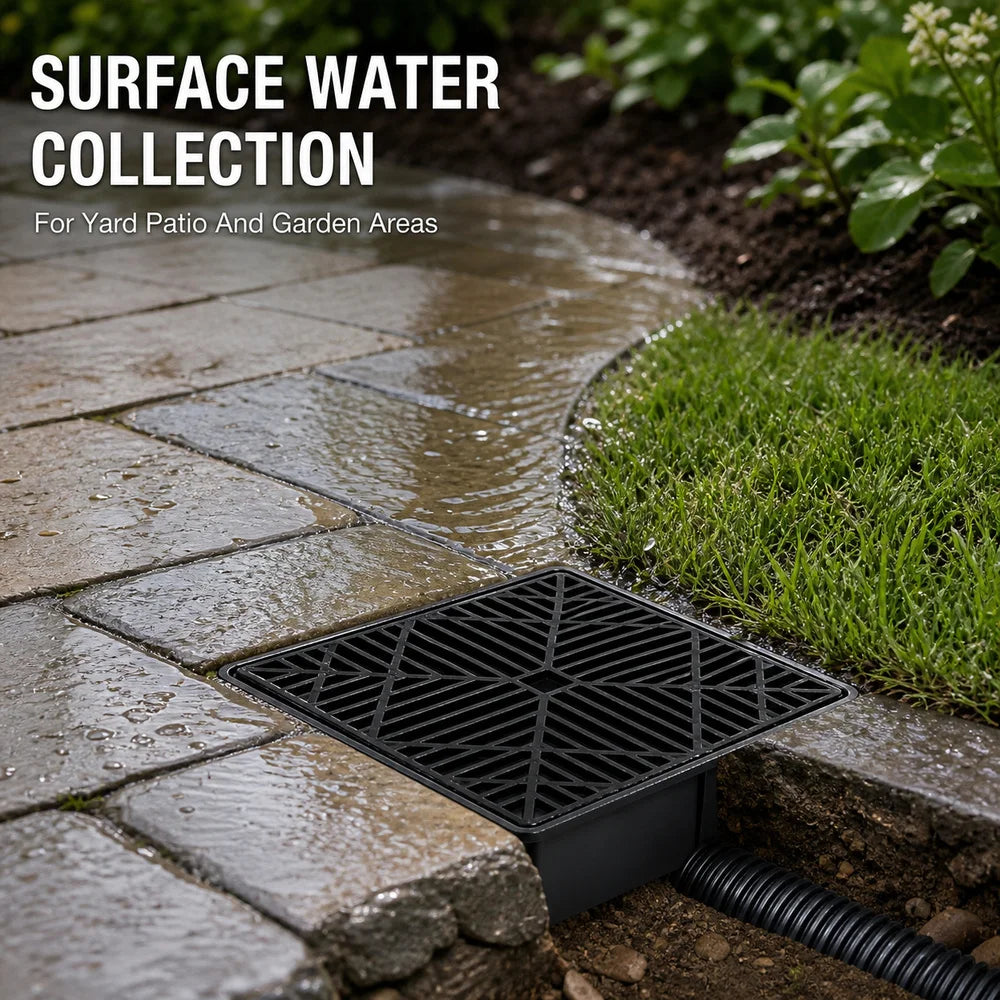

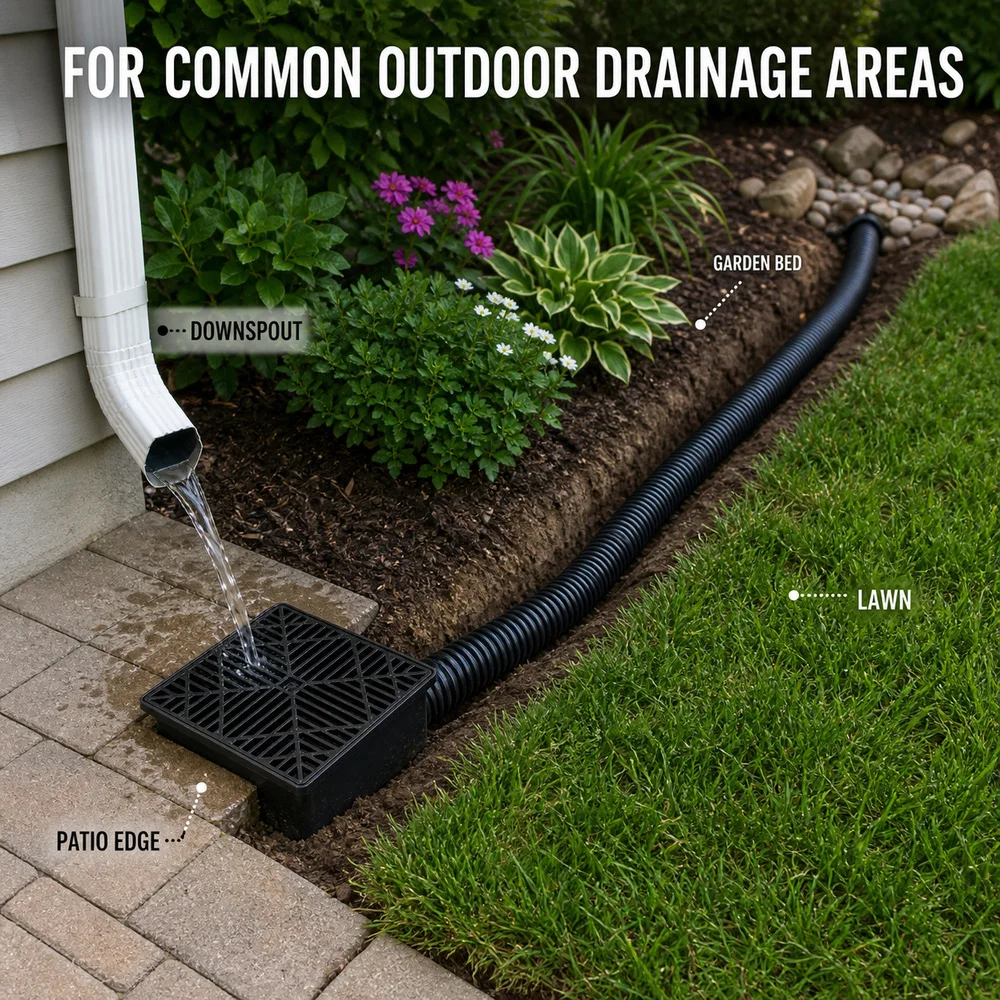

SURFACE WATER COLLECTION

The square basin collects surface runoff through the grated top and directs it into the connected drain pipe.

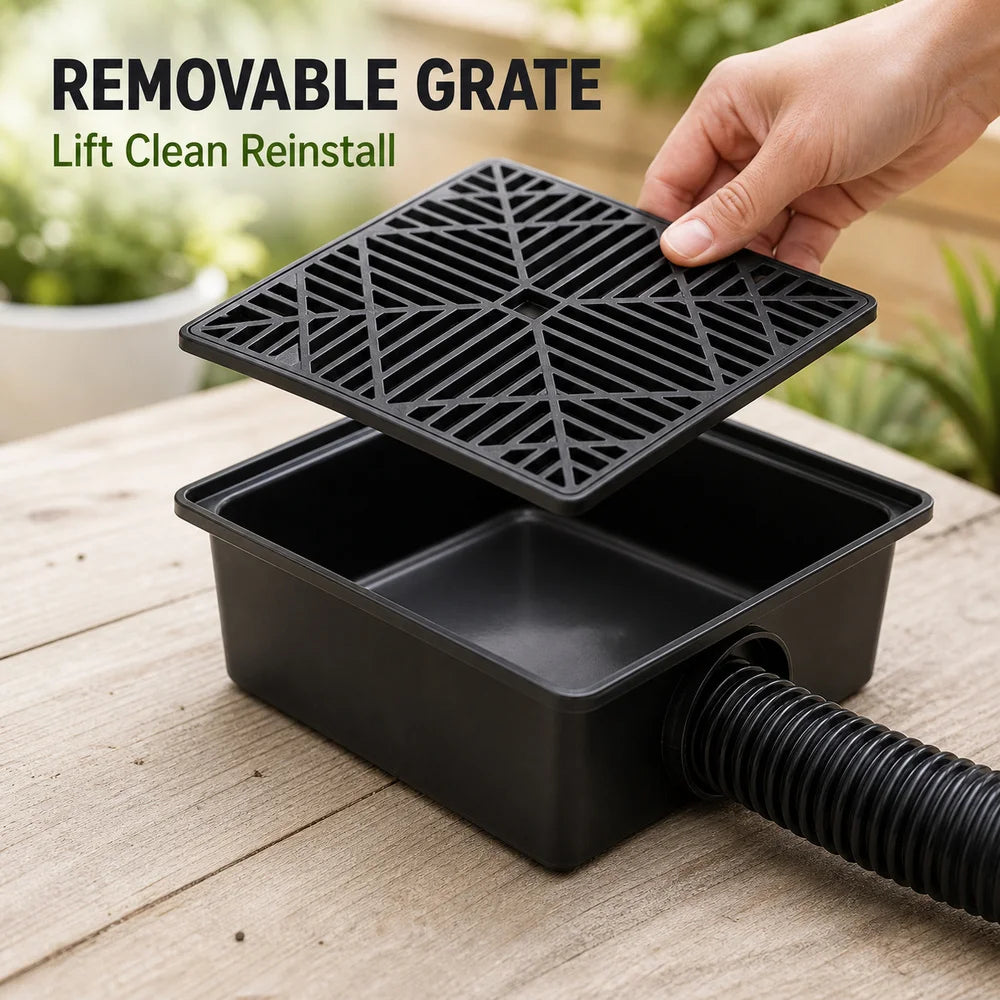

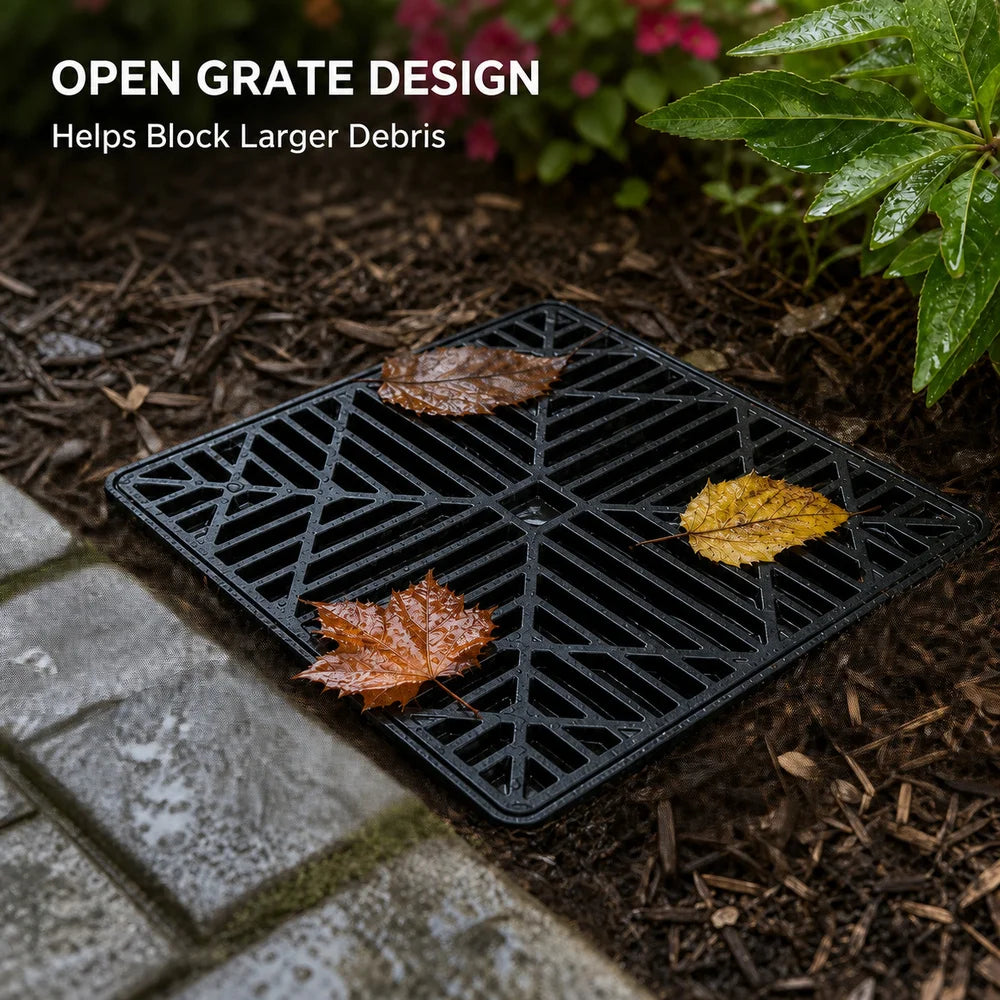

REMOVABLE GRATE

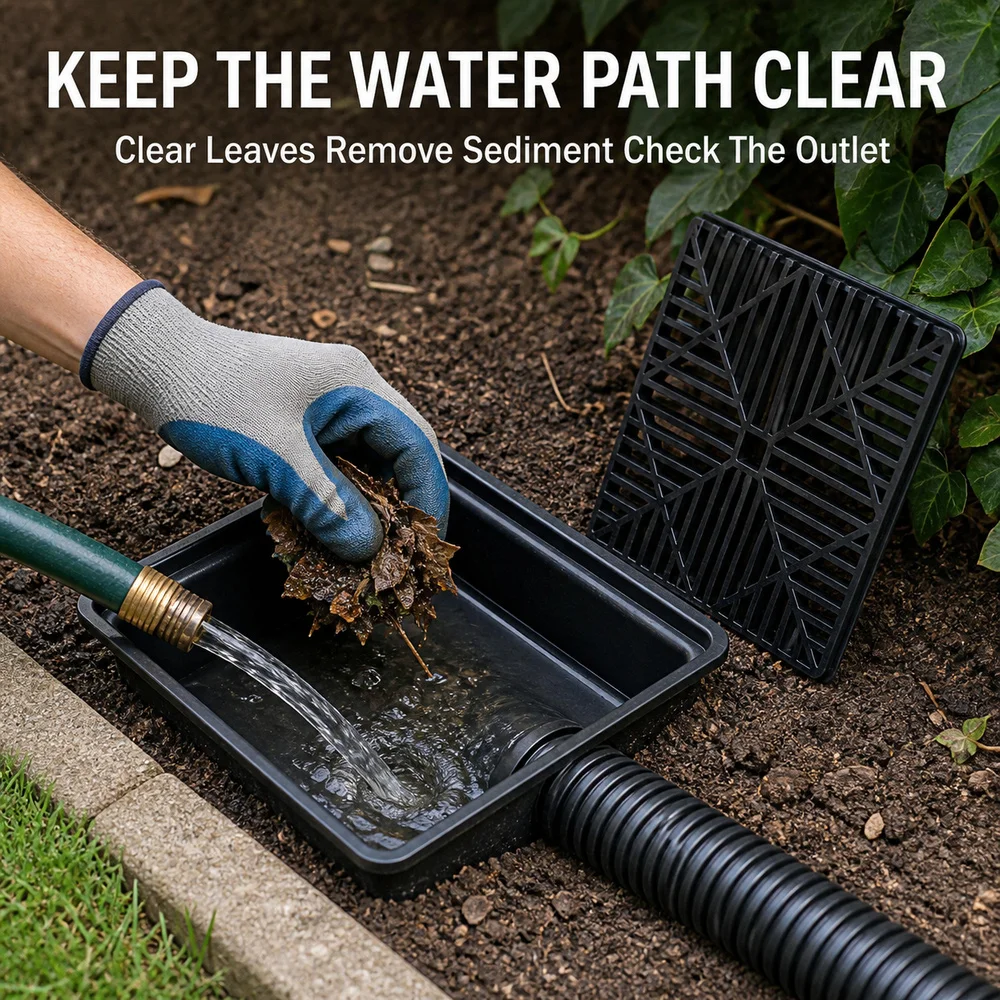

The open grate allows water to enter while helping block larger leaves and outdoor debris. Remove the grate when the basin needs cleaning.

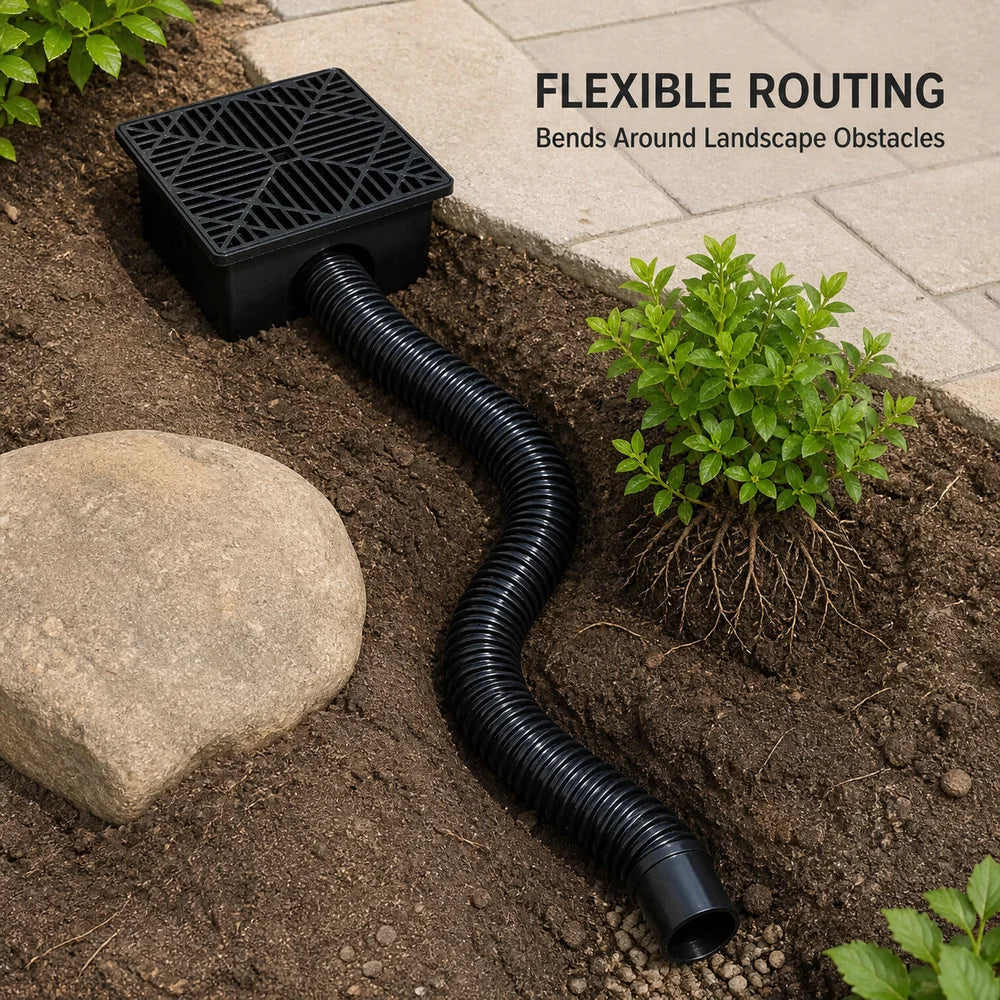

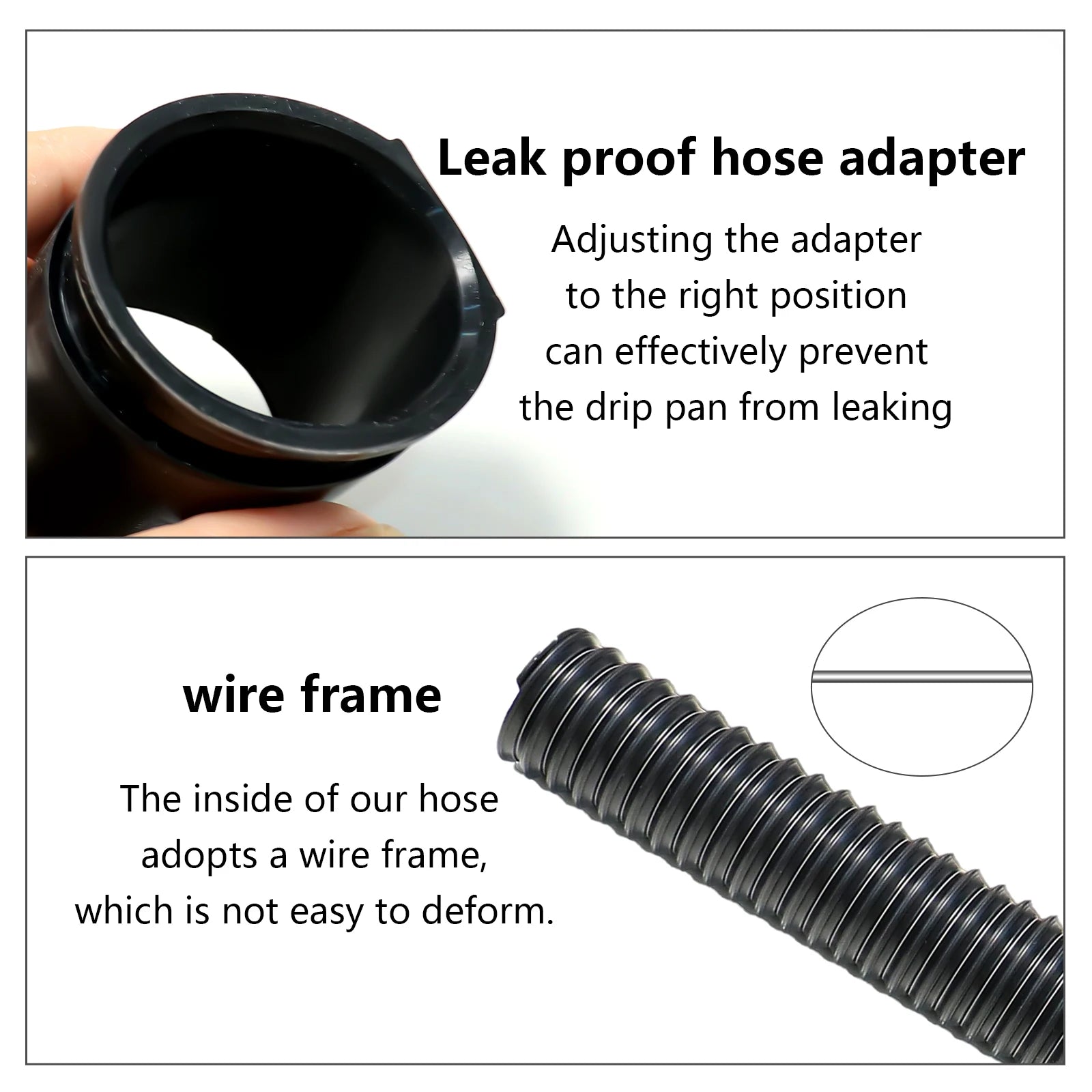

FLEXIBLE CORRUGATED PIPE

The expandable pipe bends around landscaping and other obstacles to support different drainage layouts.

COMPACT TO EXTENDED LENGTH

The long pipe measures approximately 14.37 inches before stretching and extends up to approximately 59.06 inches.

TWO PACKAGE OPTIONS

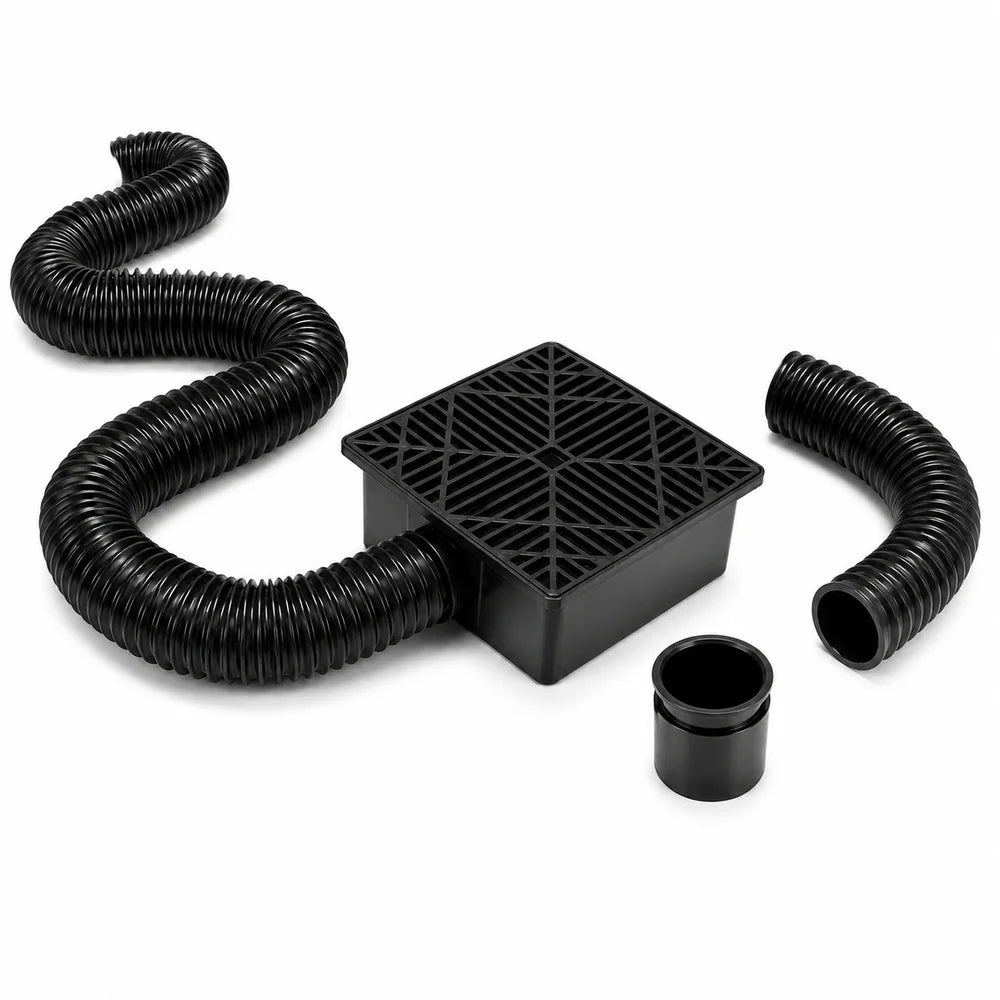

Choose the one-pipe kit for a basic drainage route or the two-pipe kit with one long pipe and one short pipe for additional layout flexibility.

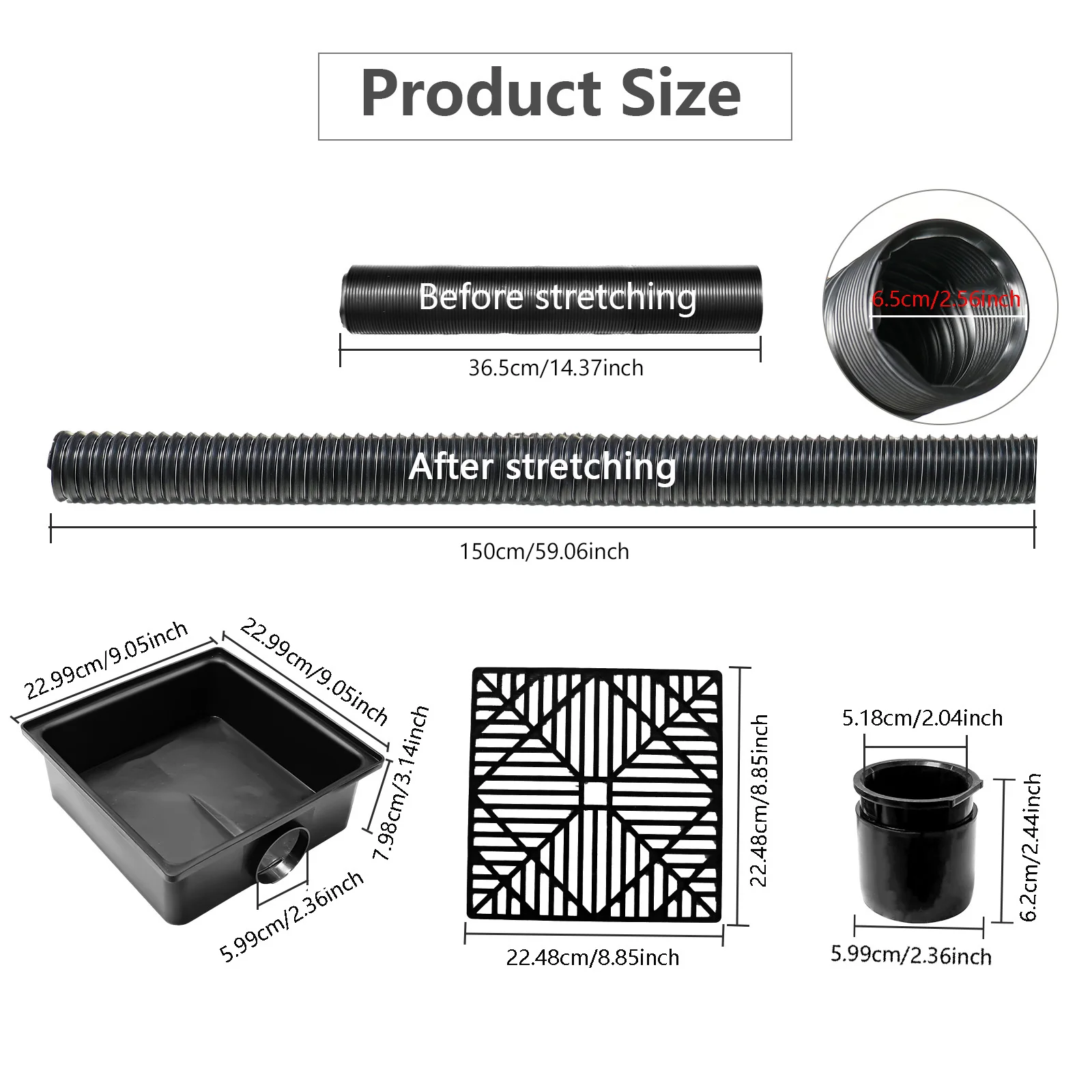

【Product Dimensions】

Catch Basin: Approximately 9.05 × 9.05 × 3.14 inches

Grate: Approximately 8.85 × 8.85 inches

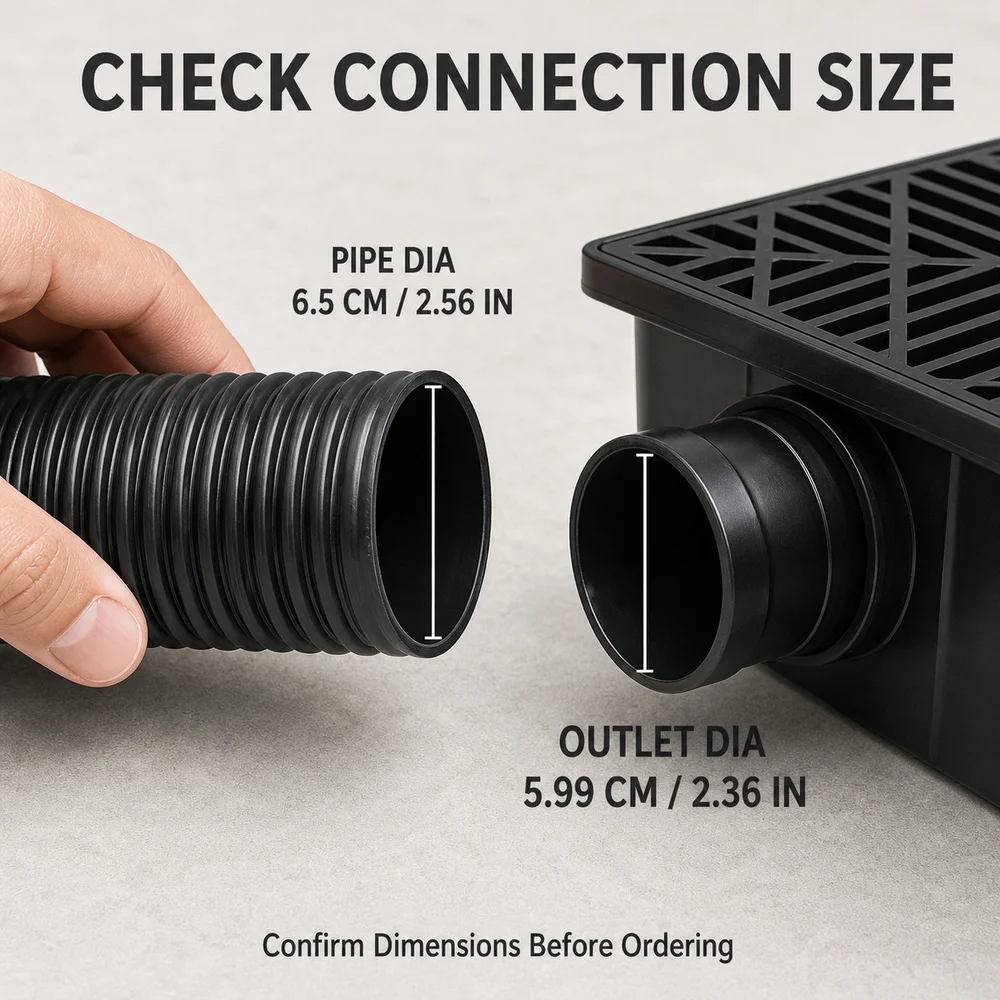

Pipe Diameter: Approximately 2.56 inches

Outlet Diameter: Approximately 2.36 inches

Long Pipe Before Stretching: Approximately 14.37 inches

Long Pipe Maximum Extended Length: Approximately 59.06 inches

Measurements are taken manually. Small differences may occur.

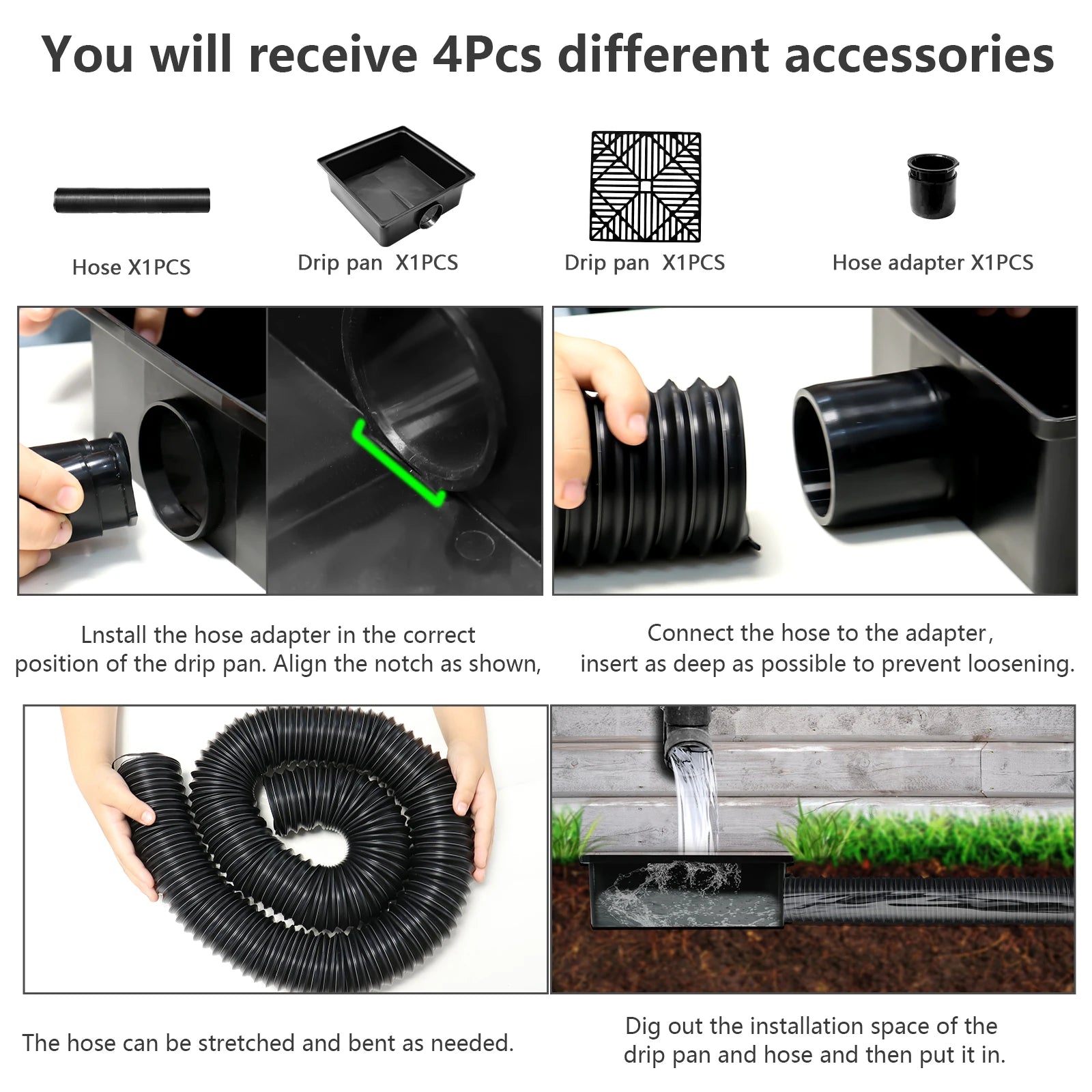

【Installation Guide】

1. Select a drainage location and plan the pipe route before digging.

2. Dig a space for the catch basin and a shallow sloped trench for the drain pipe.

3. Connect the pipe securely to the basin outlet.

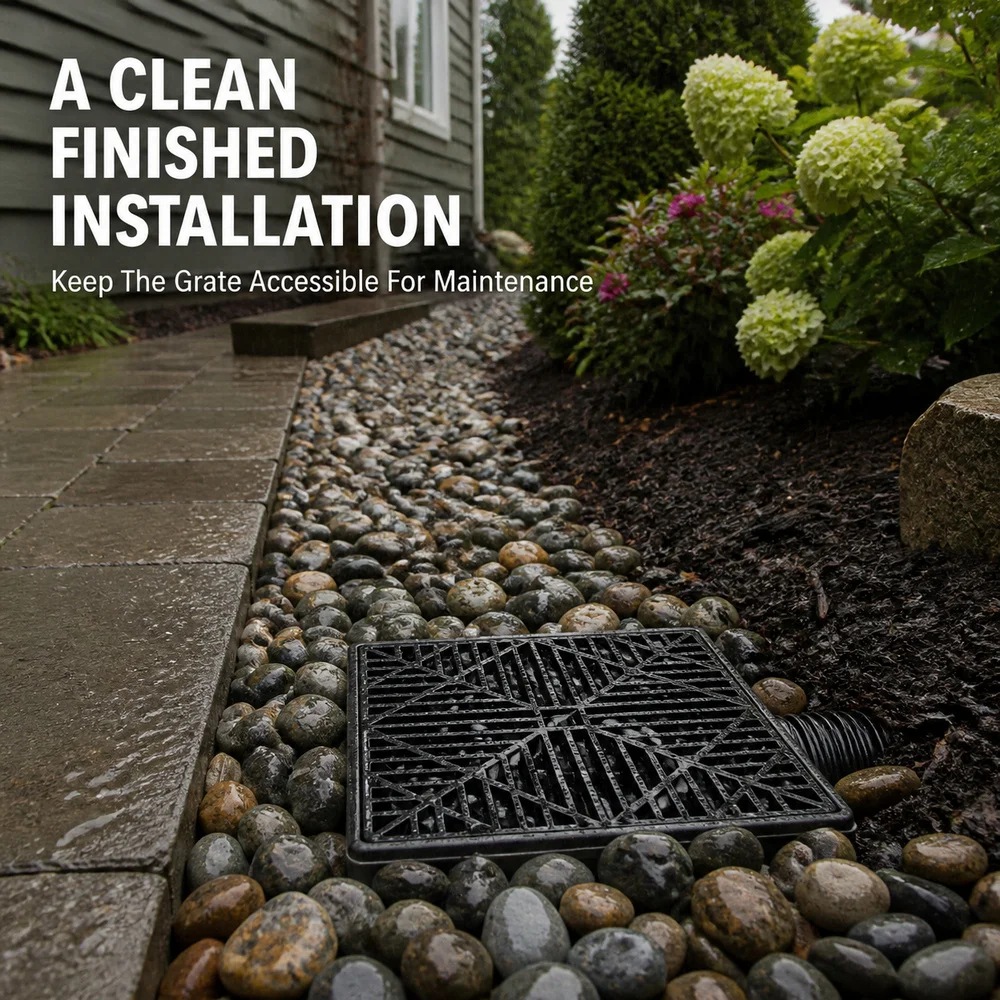

4. Position the grate close to the surrounding ground surface.

5. Backfill around the basin and pipe without crushing or sharply bending the pipe.

6. Pour water over the grate to test the drainage direction before completing the installation.

【Important Notes】

Confirm the product and connection dimensions before ordering.

The maximum extended pipe length is an approximate value. Avoid pulling the pipe beyond its natural limit.

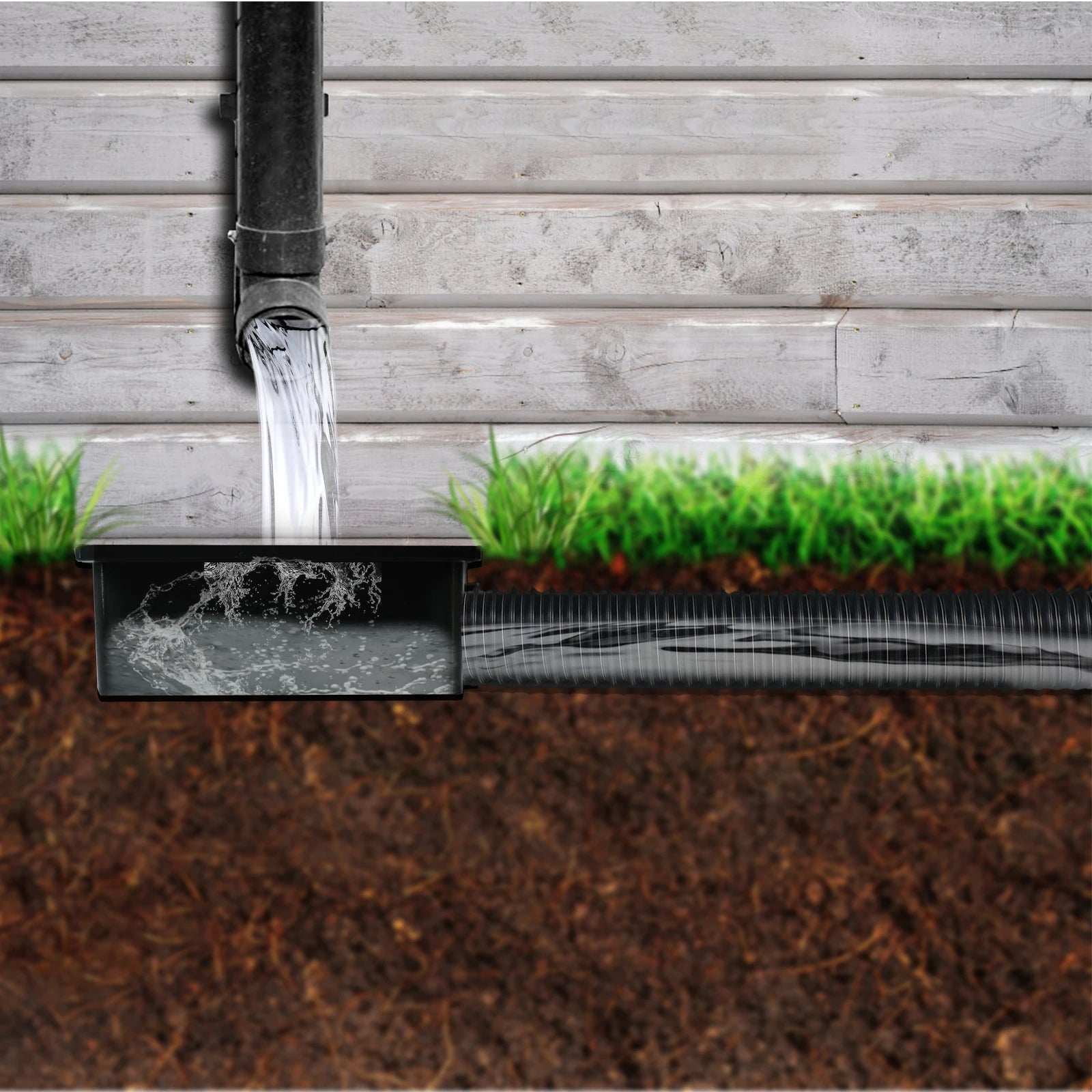

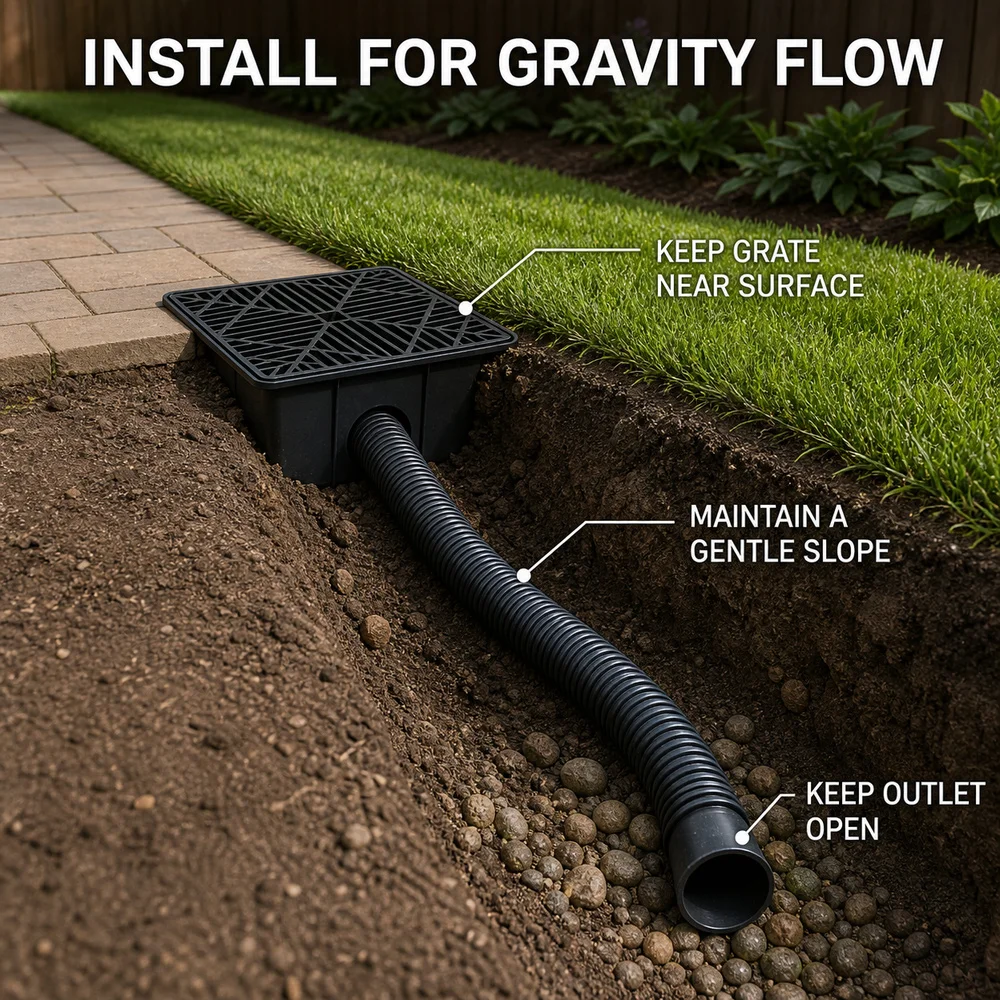

Maintain a gradual downward slope so water can move through the pipe by gravity.

Keep the pipe outlet open and direct it toward a suitable drainage area.

No vehicle load rating has been provided. Do not install in driveways or vehicle traffic areas unless separately protected.

Installation requirements may vary according to soil conditions local drainage rules and site layout.
